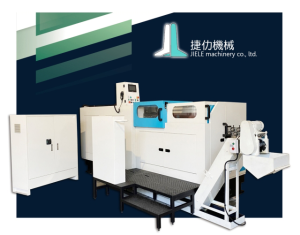

HS-10B2SL

Product number:HS-10B2SL
Place of origin:Taiwan

立即詢問

Product specification

MODEL		HS-10BSL
SPECIFICATION
FORGING STATION		2
PRODUCT	SIZE	(M6)
	MAX.L.(mm)	50		105
	MIX.L.(mm)	12		30
CUT-OFF DIA MAX(mm)		8
CUT-OFF LENGTH MAX(mm)		70		130
KICK-OUT LENGTH MAX(mm)		60		120
P.K.O LENGTH MAX(mm)		12
CUT-OFF QUILL(DXL)(mm)		28X46
MAIN DIE HOLE(DXL)(mm)		50X65		50X135
DIES PITCH(mm)		60
PUNCH HOLE (DXL)(mm)		40X77
RAM STROKE(mm)		120		180
FORGING POWER(ton)		15		25
MAX.OUTPUT(pcs/minute)		350		250
MAIN MOTOR(hp)		15		15

Features

The whole machine equipment is easy to operate and the clip tableSlide drive moved to cutter side.
a.Improve device stability
b.Operation convenience for personnel

Inner dual-track balance fast stabilization mechanism
a.The crankshaft and parts achieve their own balance, offsetting the shock force generated by operation and pressing, reducing wear and increasing the life of parts, and the precision remains unchanged during high-speed production.
b.Effectively reduce the side volume of the machine

Double outlet design to avoid mixing with waste during production.

Clip table design
a. Lightweight fixture skateboard alumium alloy design.
b.A set of clamp mechanism is added to the fixture table, and product output can be stably dropped to avoid collision avoidance

Cutter design optimization
Cutter mechanism-the cutter spindle is changed to four The angle type overcomes the shaking of the cutter head and causes the embryo The material is unstable ,the cut surface of the blank is flat and does not need to be do the whole head again
